Product Description

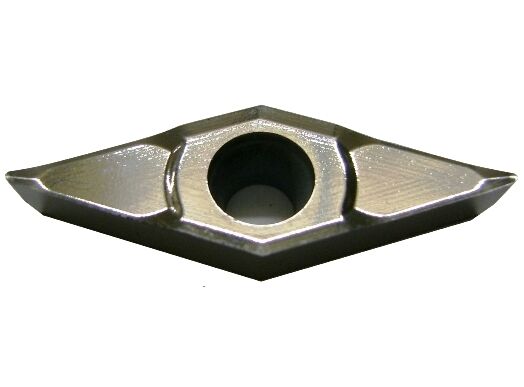

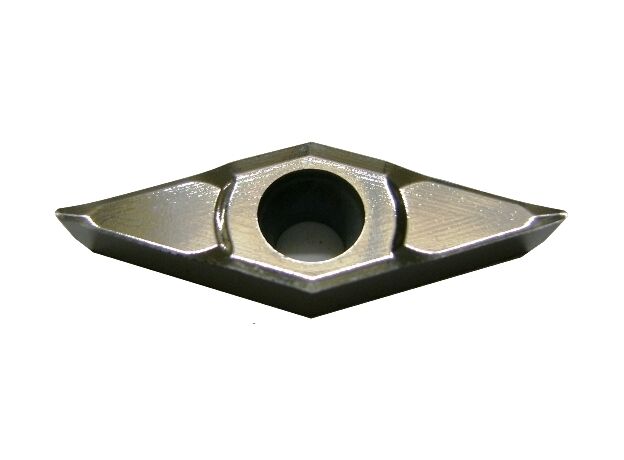

VCGT160404 AG-CX10
These inserts are high rake with sharp ground edges and polished top surface.
Intended for machining aluminium and plastics but also excellent for fine cuts
on almost any material. Many users have found these inserts are well suited to
small low powered machines. They achieve high precision and excellent surface finish.
Much like using a fine ground HSS tool but with all the advantages of tungsten carbide.
Suits tools below.
SVJBR1616K16 16mm Right Hand Tool
SVJBL1616K16 16mm Left Hand Tool
SVJBR2020K16 20mm Right Hand Tool
SVJBL2020K16 20mm Left Hand Tool
SVVBN2020K16 20mm Neutral Tool
SVJBR2525M16 25mm Right Hand Tool
SVJBL2525M16 25mm Left Hand Tool
SVVBN2525M16 25mm Neutral Tool
PLEASE NOTE.
VCGX inserts differ from VBGX inserts only in the front clearance angle.
Please check tool number for compatibility. i.e.. SVJBR / SVJCR
Sometime, a C insert can be used in a B tool, but not usually the other way around.
