Product Description

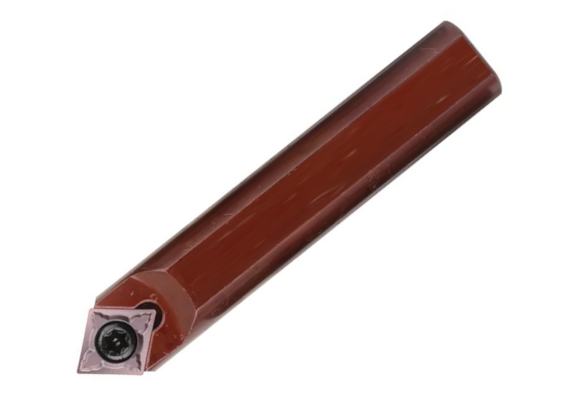

S12X-SCMCN-09 Line boring tool. Right hand.
Right hand and left hand bars also available.
Used for line boring machines or custom made boring bars.
Or, simply make your own large diameter boring bar.
Shank 12mmLength 75mm
Approach angle 50°
Inserts not included.
Applicable insert examples.
CCMT09T304HQ General machining 0.4 nose radius.
CCMT09T308HQ General machining 0.4 nose radius.
CCMT09T304PP Finishing machining 0.4 nose radius.
CCGT09T304L-F Sharp ground cutting edge L/H.
CCGT09T304R-F Sharp ground cutting edge R/H.
CCGT09T302MP-CK Precision machining
CCGX09T304AG Non ferrous 0.4 nose radius.
CCGX09T308AG Non ferrous 0.4 nose radius.
